Fast DC Charging Pile Series

Ultra Fast Dual Gun DC Charger Series

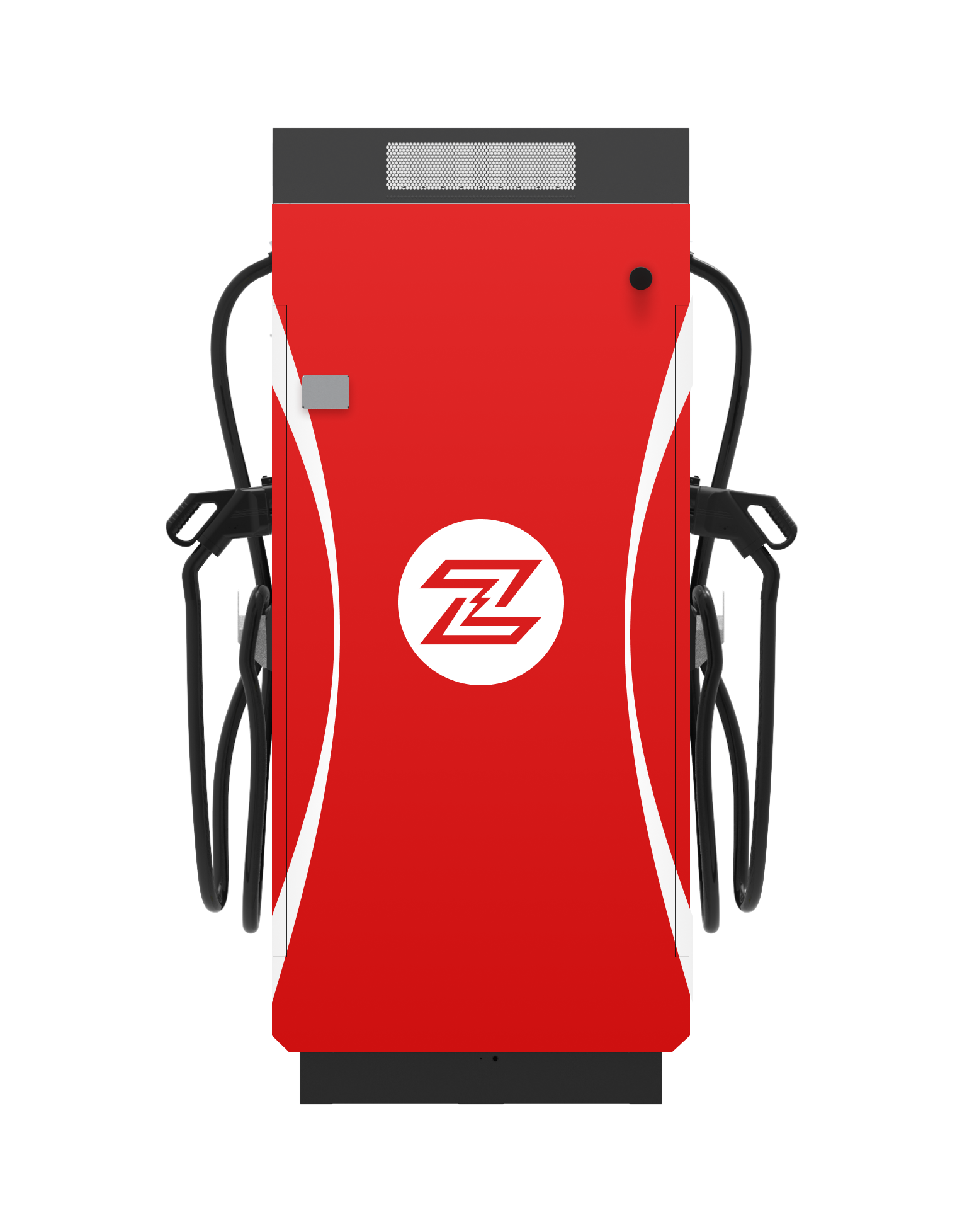

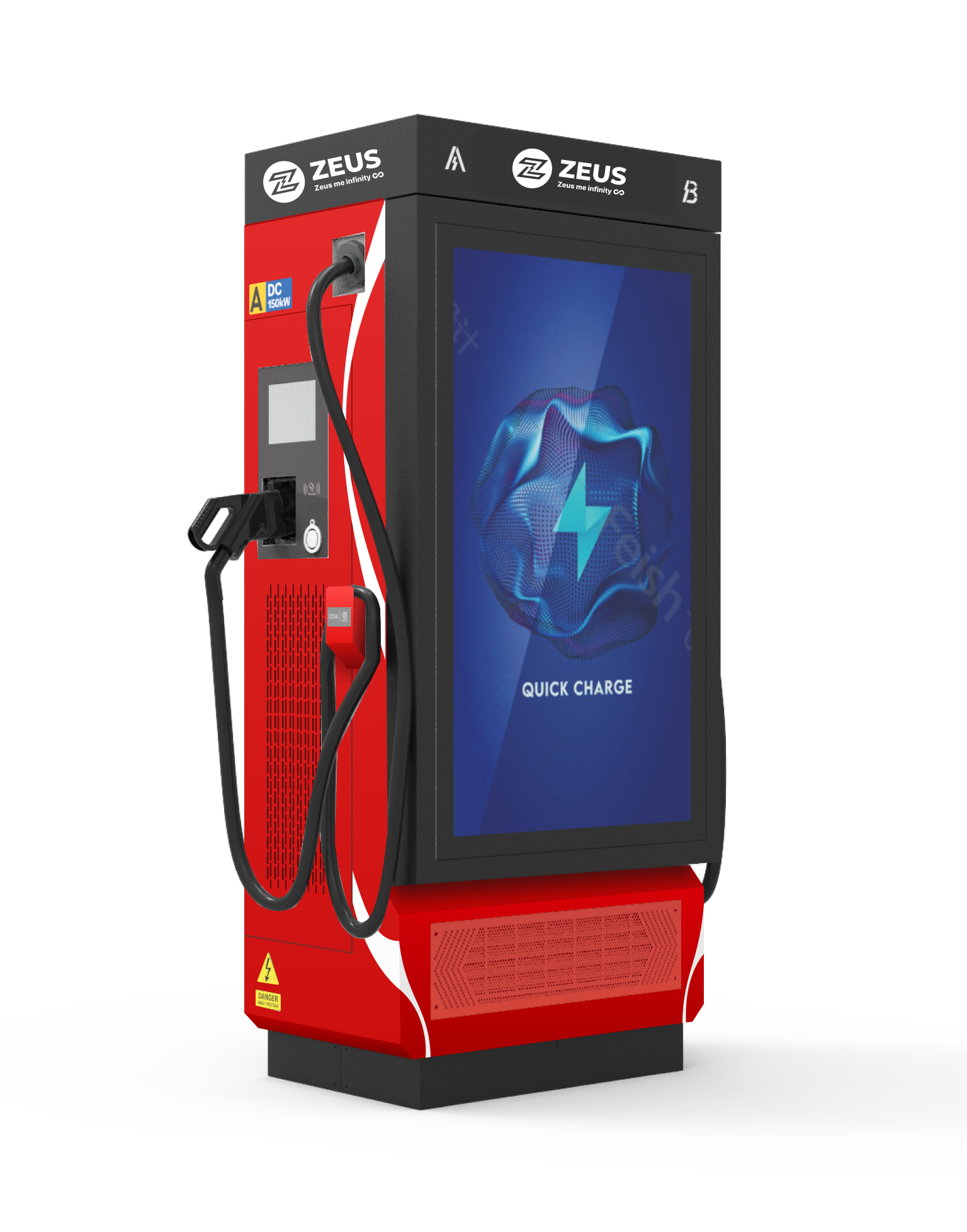

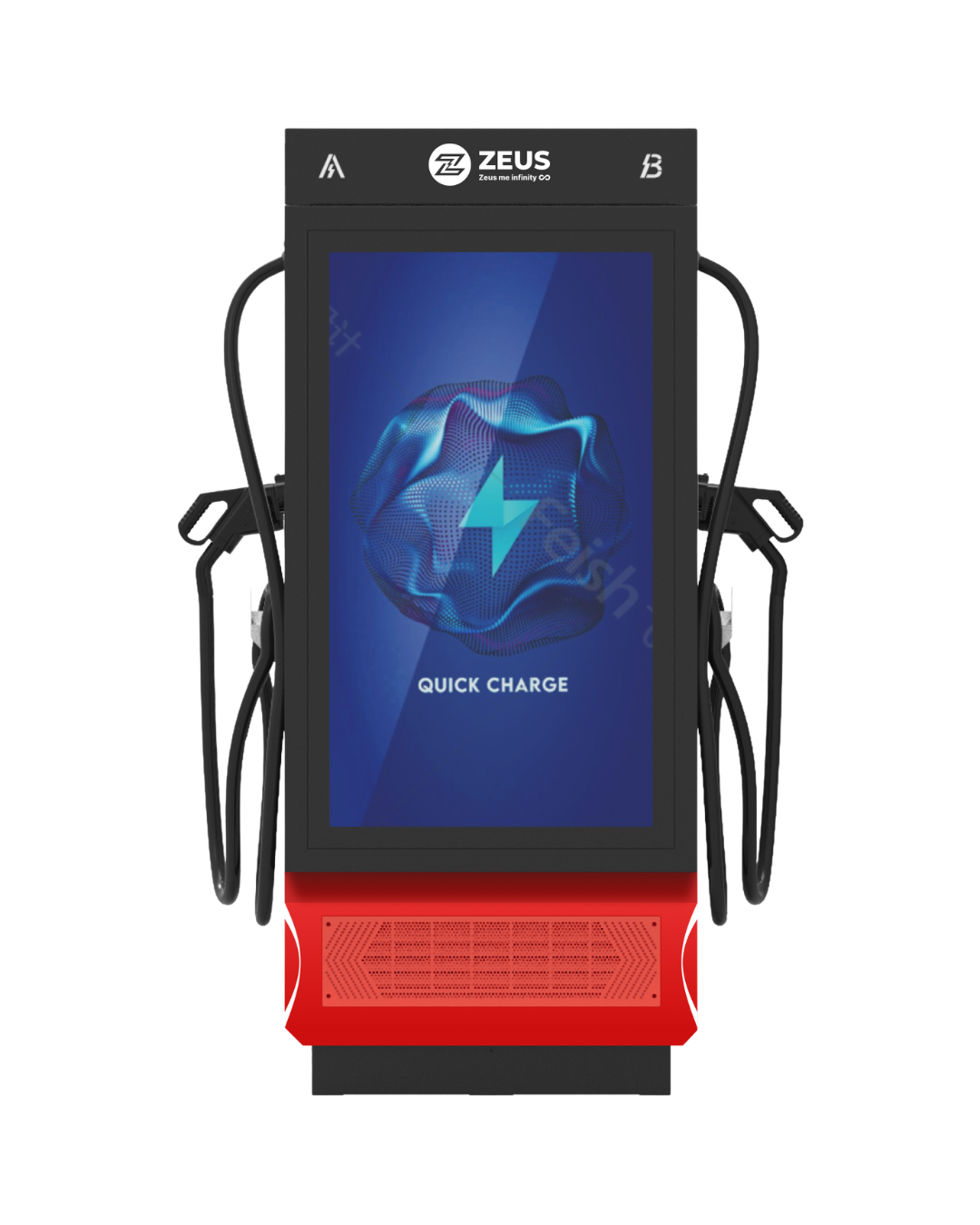

Advertising Screen DC Charger | 60kW-120kW Dual Gun

Features

- Features -

The design is compatible with both new and old international standards and can automatically configure the charging voltage according to the needs of different models to meet the charging requirements of different models.

Integrating Ethernet and 4G communication methods, the cloud service system has functions such as user charging, user settlement, reporting system, equipment maintenance, remote monitoring and management, and managers can easily count the operating status of charging stations.

The APP can be used to perform functions such as positioning, navigation, charging reservation, scanning QR Code for charging, real-time query, etc., and supports multiple payment methods.

The charging methods are diversified, including automatic, scheduled, quantitative, fixed-rate, and SOC charging. The powerful division of labor and constant power functions shorten the charging time by 1/5.

The complete electrical safety design has functions such as timing, real-time monitoring of safety protection, early diagnosis of equipment abnormalities, alarm feedback, and BMS autonomous safety protection.

IP55 protection level, moisture-proof, mildew-proof, waterproof, dust-proof, flame-retardant. With overheating, overload, short circuit, leakage, battery reverse connection protection and other protection functions.

The humanized design makes it convenient for customers to swipe cards, take out the gun for charging, and stop in an emergency. The charging gun head is equipped with an electronic lock to prevent the gun head from being pulled out at will during charging, ensuring personal safety.

Features

It deploys DC fast charging technology for single-gun, dual-gun charging, and intelligent power distribution. The system includes a control unit, human-machine interface, AC input, DC output, power conversion, metering unit, vehicle connection device, and advertising system.

The input end has protection functions such as overvoltage, low voltage, overload, short circuit, leakage, and surge; the output end has protection functions such as overvoltage, low voltage, overload, short circuit, battery reverse connection, insulation, and abnormal connection to ensure personal and vehicle safety during charging .

Supports any combination of US, European, Japanese, and Chinese standard charging interfaces; supports the open charging protocol OCPP1.6J, and supports ISO15118 and DIN70122 communication protocols.

It features a large 8-inch display with 800 nits of high brightness and supports various interactive methods, including QR code scanning, card swiping, remote activation, and contactless payment.

A 55-inch outdoor LCD display with 2500cd/m² brightness, automatic light sensing, and tempered glass. It features an industrial-grade Android motherboard and supports WiFi, RJ45, and 4G connectivity.

It features a control system capable of broadcasting advertising videos both remotely and locally, allowing for simultaneous management of multiple machines or a single unit, while supporting full HD 1920x1080 decoding.

The internal configuration of the independent advertising machine heat dissipation and auxiliary heating system guarantees the reliable operatio of the equipment in extreme environments.
